means to access the Internet, commercially


1. Regular DSLImage result for dsl wire Image result for dsl wire Image result for dsl wire Image result for telephone cable  Image result for telephone cable


2. Naked DSL or Dry-Loop DSL (Twisted-pair wires; RJ11–2C)Image result for 6p2c


3. Cable Net (Co-axial cable)
      Image result for coaxial cable  Image result for cable internet modem


4. LAN Connection (Ethernet; RJ45–8C)
Image result for cable internet



5. FTTH (Optic-fiber cable)
ONU: Optical Netork Unit
Image result for ftth modem

Image result for ftth modem

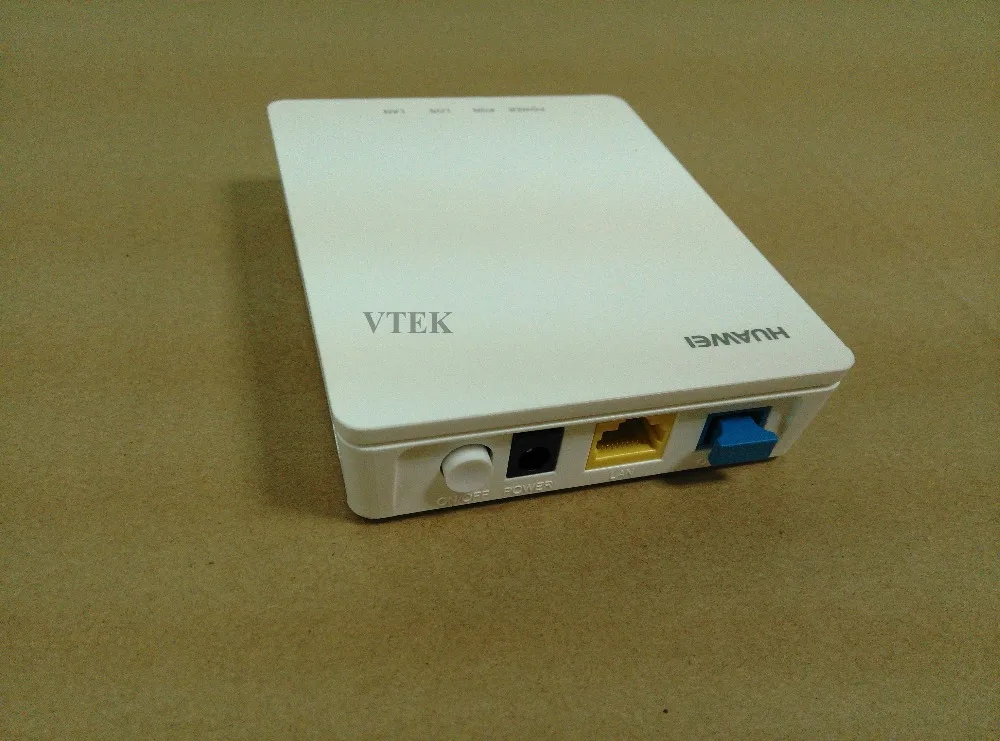

Huawei's HG8010/HG8010H single ethernet port GPON EPON ONT/ONU apply to FTTH
Image result for HG8010H FTTH GPON ONU

Image result for HG8010H FTTH GPON ONU

Image result for ftth modem

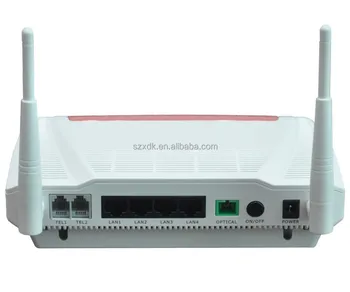

4GE+2POTS+Wifi FTTH GPON ONT MoDem

GE: Gigabit Ethernet
POTS: Plain Old Telephone Service
FTTH: Fiber To The Home
GPON: Gigabit Passive Optical Networks
ONT: Optical Network Terminal
Image result for ftth modem

Place of Origin: Guangdong, China (Mainland)
Brand Name: GL-COM
Model Number: G8007U
PON port: 1 GPON port (uplink 1.25Gbps, downlink 2.5Gbps)
Dimension: 117mm*25.4mm*92mm(W*H*D)
Weight: < 0.4Kg
Port:  4GE+2POTS+WIFI
VLAN ID: 64 full range
Power supply: 12VDC
Power consumption: 10W
Working temperature: 0-55℃
Storage temperature: -30-60℃

Image result for ONT MODEM'


Gigabit RJ45 Copper SFP Transceiver Module
Image result for SFP to RJ-45 copper port converter
